Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

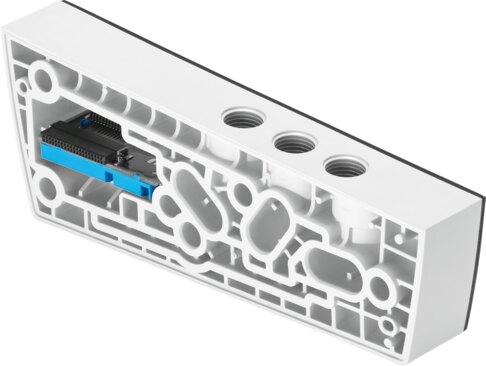

Reference imageConfirm configuration by manufacturer part number.
Festo
576569
Power supply module VMPAC-SP-0
This Festo industrial component, part number 576569, features a housing material of reinforced PA and a product weight of 156 g with dimensions measuring 32.8 mm in width, 169 mm in length, and a 26.8 mm width dimension. The unit operates within a pressure range of -0.9 bar to 8 bar, a pilot pressure of 3 bar to 8 bar, an ambient temperature range of -5 °C to 50 °C, and incorporates G3/8 pneumatic connections 3 and 5. Constructed with a corrosion resistance class (CRC) of 4 for particularly high corrosion stress, it complies with VDMA24364-B2-L LABS (PWIS) conformity and features RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576569
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576569.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 32.8 mm
- Length
- 169 mm
- Width dimension
- 26.8 mm
- Operating pressure
- -0.9 bar...8 bar
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 156 g
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 576569. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
