Festo
576572

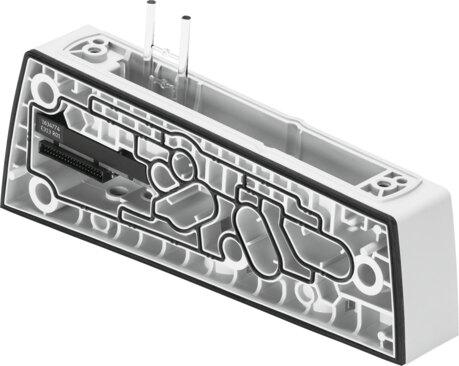

Sub-base VMPAC-AP-14-1
The Festo industrial component, part number 576572, features a PA-reinforced housing with a width of 32.8 mm, a length of 169 mm, a width dimension of 26.8 mm, and a product weight of 160 g. It accommodates a maximum of one valve position and includes G1/4 pneumatic connections 2 and 4, operating at pressures from -0.9 bar to 8 bar with a pilot pressure of 3 bar to 8 bar. This RoHS-compliant unit exhibits a corrosion resistance class of 4 for particularly high corrosion stress, VDMA24364-B2-L LABS conformity, and an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576572
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576572.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 32.8 mm
- Length
- 169 mm
- Width dimension
- 26.8 mm
- Max. no. of valve positions
- 1
- Operating pressure
- -0.9 bar...8 bar
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 160 g
- Pneumatic connection 2
- G1/4
- Pneumatic connection 4
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
