Festo
576575

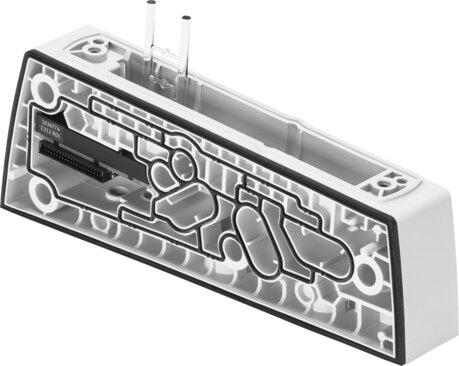

Sub-base VMPAC-AP-14-B-2
The Festo 576575 is an industrial component featuring a PA-reinforced housing with a width of 32.8 mm, a length of 169 mm, a width dimension of 26.8 mm, and a product weight of 160 g. This part accommodates a maximum of 1 valve position, operates within a pressure range of -0.9 bar to 8 bar, and requires a pilot pressure between 3 bar and 8 bar at ambient temperatures from -5 °C to 50 °C. Designed with G1/4 pneumatic connections 2 and 4, it achieves corrosion resistance class 4 for particularly high corrosion stress and complies with VDMA24364-B2-L LABS conformity and RoHS material directives. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576575
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576575.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 32.8 mm
- Length
- 169 mm
- Width dimension
- 26.8 mm
- Max. no. of valve positions
- 1
- Operating pressure
- -0.9 bar...8 bar
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 160 g
- Pneumatic connection 2
- G1/4
- Pneumatic connection 4
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 576575. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
