Festo
576578

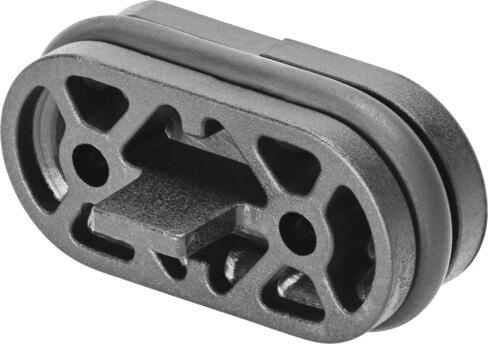

Separator VMPAC-TE-1-3-5
The Festo part number 576578 is an industrial component weighing 15 g with an operating pressure range of -0.9 bar to 8 bar and a pilot pressure range of 3 bar to 8 bar. Constructed with PA-reinforced separator material, NBR O-rings, and RoHS compliant materials, this unit features a corrosion resistance class (CRC) of 4 for particularly high corrosion stress and VDMA24364-B2-L LABS conformity. It operates within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576578
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576578.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Operating pressure
- -0.9 bar...8 bar
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 15 g
- Note on materials
- RoHS compliant
- O-ring material
- NBR
- Separator material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 576578. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
