576636

Name: Festo 576636 Connecting cable NEBC-F12G8-KH-3-N-S-F12G8
Brand: Festo

Connecting cable NEBC-F12G8-KH-3-N-S-F12G8

The Festo part number 576636 is an industrial component featuring dimensions conforming to the EN 61076-2-101 norm and a product weight of 280 g. This model includes dual straight hybrid plug round electrical connections utilizing M12x1 connection technology with Festo-specific coding, 8 pins and wires, and a screw-type lock with AF 14 and longitudinal knurl for both the field device and control sides. The design incorporates a cable designation without a label holder and provides a contact durability rating of 100 mating cycles. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 576636
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 576636.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: Dimensions as per EN 61076-2-101
Cable designation: Without label holder
Contact durability: 100
Product weight: 280 g
Electrical connection 1, function: Field device side | Control side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Hybrid plug
Electrical connection 1, cable outlet: Straight

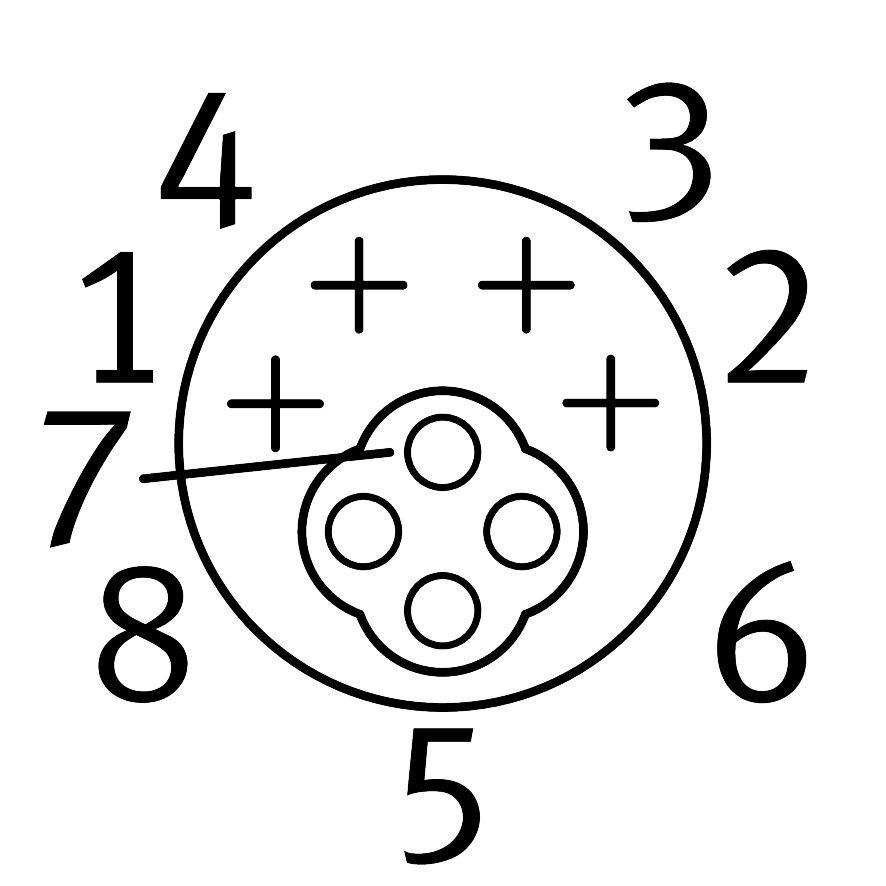

Electrical connection 1, connection technology: M12x1, with Festo-specic coding
Electrical connection 1, number of pins/wires: 8
Electrical connection 1, occupied pins/wires: 8
Electrical connection 1, type of mounting: Screw-type lock with AF 14 and longitudinal knurl
Electrical connection 2, function: Field device side | Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Hybrid plug
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: M12x1, with Festo-specic coding
Electrical connection 2, number of pins/wires: 8
Electrical connection 2, occupied pins/wires: 8
Electrical connection 2, type of mounting: Screw-type lock with AF 14 and longitudinal knurl
DC operating voltage range: 0 V...30 V
Current rating at 40° C: 7 A
Note on acceptable current load at 40°C: 1.5 A for conductor cross-section of 0.14 mm²
Surge resistance: 0.8 kV
Cable length: 3 m
Cable characteristic: Standard
Connector cable test conditions: Test conditions on request
Bending radius, xed cable installation: 24 mm
