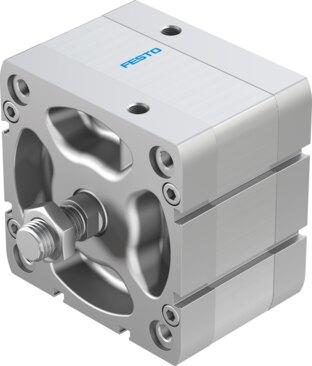

Name: Festo 577200 Compact cylinder ADN-100-15-A-PPS-A
Brand: Festo

Compact cylinder ADN-100-15-A-PPS-A

The Festo 577200 is a double-acting industrial component with a 100 mm piston diameter, a 15 mm stroke, and an M16x1.5 external piston rod thread conforming to ISO 21287. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 bar to 10 bar pressure range, this unit features self-adjusting pneumatic end-position cushioning, position sensing via proximity switch, and a moderate corrosion resistance class of CRC 2. It delivers a theoretical advancing force of 4712 N and a retracting force of 4524 N at 6 bar while functioning in any mounting position across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 577200
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 577200.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 15 mm
Piston diameter: 100 mm
Piston rod thread: M16x1.5
Cushioning: Self-adjusting pneumatic end-position cushioning
Mounting position: Any
Conforms to standard: ISO 21287
Piston rod end: External thread
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 2.5 J
Cushioning length: 10 mm
Theoretical force at 6 bar, retracting: 4524 N
Theoretical force at 6 bar, advancing: 4712 N
Moving mass: 656 g
Product weight: 1912 g
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: G1/8
Note on materials: RoHS compliant
Flange screws material: Steel
Cover material: Die-cast aluminum, coated
Seals material: TPE-U(PUR)
