Festo
577209

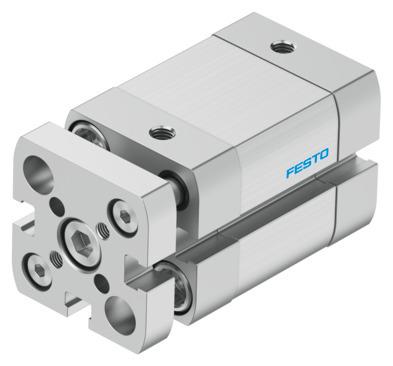

Compact cylinder ADNGF-20-15-PPS-A
The Festo 577209 is a double-acting industrial component built on a profile barrel structural design with a piston, piston rod, and a guide rod with yoke providing protection against torsion. Featuring a 20 mm piston diameter, a 15 mm stroke, and ISO 21287 compliance, this unit operates within a pressure range of 1.9 bar to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. It includes self-adjusting pneumatic end-position cushioning, position sensing via proximity switch, and delivers a theoretical force of 188 N advancing and 141 N retracting at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577209
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577209.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 15 mm
- Piston diameter
- 20 mm
- Based on norm
- ISO 21287
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.19 MPa...1 MPa | 1.9 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.2 J
- Cushioning length
- 3 mm
- Theoretical force at 6 bar, retracting
- 141 N
- Theoretical force at 6 bar, advancing
- 188 N
- Moving mass
- 73 g
- Product weight
- 190 g
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Flange screws material
- Steel
- Cover material
- Wrought aluminum alloy, anodized
- Seals material
- TPE-U(PUR)
- End plate material
- Wrought aluminum alloy, anodized
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
- Wrought aluminum alloy, smooth-anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 577209. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
