Festo
577219

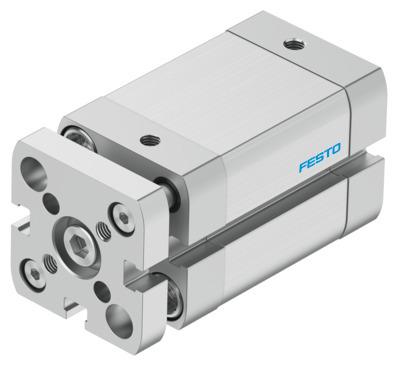

Compact cylinder ADNGF-25-25-PPS-A
The Festo 577219 is an ISO 21287 industrial component featuring a 25 mm piston diameter and a 25 mm stroke, engineered with a piston, piston rod, and profile barrel structural design. This double-acting unit operates with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of 1.9 bar to 10 bar, delivering a theoretical advancing force of 295 N and a retracting force of 247 N at 6 bar. Equipped with self-adjusting pneumatic end-position cushioning, position sensing via proximity switch, and a guide rod with yoke for torsion protection, it functions within an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577219
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577219.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 25 mm
- Based on norm
- ISO 21287
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.19 MPa...1 MPa | 1.9 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.3 J
- Cushioning length
- 3.5 mm
- Theoretical force at 6 bar, retracting
- 247 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass
- 122 g
- Product weight
- 294 g
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Flange screws material
- Steel
- Cover material
- Wrought aluminum alloy, anodized
- Seals material
- TPE-U(PUR)
- End plate material
- Wrought aluminum alloy, anodized
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
- Wrought aluminum alloy, smooth-anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 577219. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
