Festo
577257

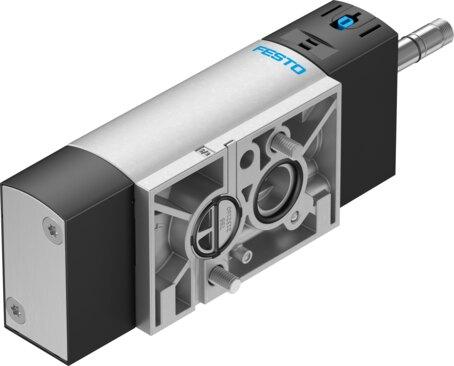

Air solenoid valve VSNC-FC-M52-MD-G14-F8
The Festo 577257 is a piloted piston gate valve featuring a switchable 5/2- or 3/2-way valve function with a 32 mm width and a NAMUR pneumatic working port connection pattern conforming to VDI/VDE 3845 standards. It delivers a normal nominal flow rate of 1250 l/min using internal pilot air supply, an operating pressure range of 0.25 MPa to 1 MPa, adjustable exhaust air, and mechanical spring reset with both detenting and non-detenting manual override. This unit includes soft sealing, positive overlap, non-reversible flow direction, and any mounting position while operating via a solenoid coil ordered separately and carrying c UL us recognition and DNVGL-TAA000011J certification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577257
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577257.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2- or 3/2-way, switchable
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1250 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- DNVGL-TAA000011J
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- With accessories
- b-value
- 0.4
- C value
- 5.2 l/sbar
- Standard nominal ow rate, exhaust air return 4->3
- 110 l/min
- Switching time off
- 48 ms
- On switching time
- 11 ms
- Duty cycle
- 100%
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 577257. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
