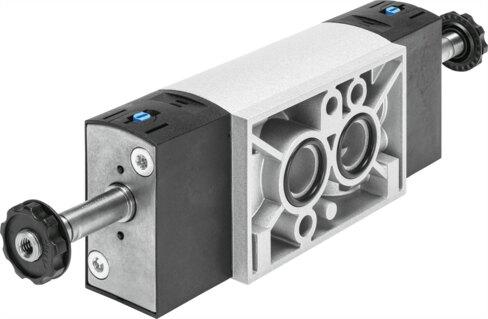

Reference imageConfirm configuration by manufacturer part number.
Festo
577260
Air solenoid valve VSNC-F-P53U-MD-G14-F8
The Festo part number 577260 is an electrical 32 mm wide 5/3-way pressurized piston gate valve featuring an internal pilot air supply port and a NAMUR connection pattern. This piloted component operates at pressures ranging from 0.3 MPa to 1 MPa (3 bar to 10 bar), delivers a normal nominal flow rate of 950 l/min, and utilizes a mechanical spring reset method with adjustable exhaust air function and positive overlap lap. Certified by DNVGL-TAA000011J and recognized as c UL us (OL), it conforms to VDI/VDE 3845 (NAMUR) standards and includes both detenting and non-detenting manual override options, while operating voltage requires a separately ordered solenoid coil. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577260
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577260.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 950 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- DNVGL-TAA000011J
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- With accessories
- b-value
- 0.5
- C value
- 2.1 l/sbar
- Switching time off
- 58 ms
- On switching time
- 14 ms
- Changeover time
- 25 ms
- Duty cycle
- 100%
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 577260. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
