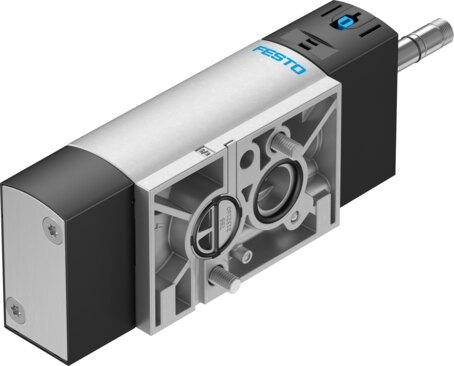

Name: Festo 577262 Air solenoid valve VSNC-FC-M52-MD-N14-F8
Brand: Festo

Air solenoid valve VSNC-FC-M52-MD-N14-F8

The Festo 577262 is a 32 mm wide industrial component featuring a switchable 5/2- or 3/2-way valve function and a piston gate valve structural design with a positive overlap lap. This piloted component operates at pressures ranging from 0.25 MPa to 1 MPa (2.5 bar to 10 bar) and delivers a normal nominal flow rate of 1250 l/min through a NAMUR connection pattern pneumatic working port conforming to VDI/VDE 3845. It includes an adjustable exhaust air function, internal pilot air supply, mechanical spring reset, soft sealing principle, and both detenting and non-detenting manual override options, while utilizing a separate solenoid coil for operating voltage and carrying c UL us and DNVGL-TAA000011J certifications. Submit the exact part number, quantity, and application requirements to request a quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 577262
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 577262.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2- or 3/2-way, switchable
Actuation type: Electrical
Width: 32 mm
Normal nominal ow rate (normalized to DIN 1343): 1250 l/min
Pneumatic working port: NAMUR connection pattern
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 0.25 MPa...1 MPa | 2.5 bar...10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Certication: c UL us - recognized (OL)
Certicate issuing authority: DNVGL-TAA000011J
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: VDI/VDE 3845 (NAMUR)
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Signal status display: With accessories
b-value: 0.4
C value: 5.2 l/sbar
Standard nominal ow rate, exhaust air return 4->3: 110 l/min
Switching time oﬀ: 48 ms
On switching time: 11 ms
Duty cycle: 100%
Coil characteristics: See solenoid coil, to be ordered separately
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
