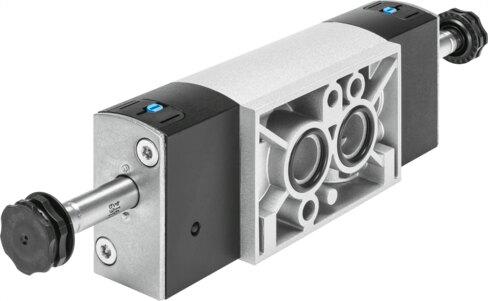

Reference imageConfirm configuration by manufacturer part number.
Festo
577268
Air solenoid valve VSNC-F-B52-D-G14-FN
The Festo 577268 is a 32 mm wide, bistable 5/2-way industrial component featuring a piston gate valve structural design with a soft sealing principle and positive overlap lap. This piloted component delivers a normal nominal flow rate of 1350 l/min according to DIN 1343 across an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) utilizing an internal pilot air supply port and a NAMUR pneumatic working port connection pattern that conforms to VDI/VDE 3845 standards. Designed with an adjustable exhaust air function, internal detenting and non-detenting manual override, and DNVGL-TAA000011J certification, it accommodates any mounting position and operates via a separately ordered solenoid coil. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577268
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577268.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1350 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Piston gate valve
- Certicate issuing authority
- DNVGL-TAA000011J
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- With accessories
- b-value
- 0.4
- C value
- 5.6 l/sbar
- Changeover time
- 20 ms
- Duty cycle
- 100%
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
