Festo
577274

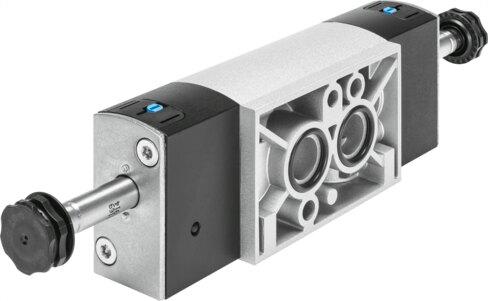

Air solenoid valve VSNC-F-P53C-MD-N14-FN
The Festo 577274 is a 32 mm wide, 5/3-way closed electrical industrial component featuring a piston gate valve structural design and a normal nominal flow rate of 1250 l/min normalized to DIN 1343. Operating between 0.3 MPa and 0.8 MPa (3 bar to 8 bar), this piloted unit utilizes an internal pilot air supply port, a soft sealing principle, positive overlap, and a NAMUR connection pattern conforming to VDI/VDE 3845 standards with DNVGL-TAA000011J certification. It includes an adjustable exhaust air function, mechanical spring reset, detenting and non-detenting manual override, and a non-reversible flow direction for mounting in any position, while operating voltage requires a separately ordered solenoid coil. Request a quote by submitting part number 577274, your required quantity, and application parameters.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577274
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577274.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1250 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certicate issuing authority
- DNVGL-TAA000011J
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- With accessories
- b-value
- 0.4
- C value
- 5.2 l/sbar
- Switching time off
- 103 ms
- On switching time
- 23 ms
- Changeover time
- 55 ms
- Duty cycle
- 100%
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 577274. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
