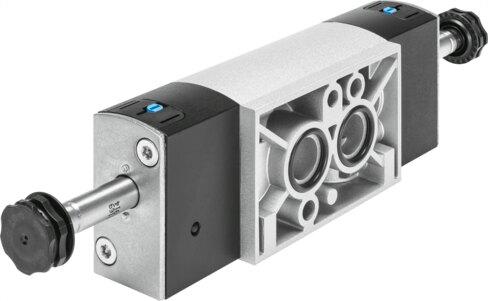

Reference imageConfirm configuration by manufacturer part number.
Festo
577275
Air solenoid valve VSNC-F-P53U-MD-N14-FN
The Festo 577275 is a 32 mm wide industrial component featuring a 5/3-way pressurized valve function with a piston gate valve structural design, soft sealing principle, and positive overlap lap. Operating with a piloted, electrically actuated control requiring a separately ordered solenoid coil, it delivers a normal nominal flow rate of 950 l/min across an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). It incorporates an internal pilot air supply port, a mechanical spring reset method, adjustable exhaust air function, detenting and non-detenting manual override, and a NAMUR connection pattern conforming to VDI/VDE 3845 with DNVGL-TAA000011J certification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577275
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577275.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 950 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certicate issuing authority
- DNVGL-TAA000011J
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- With accessories
- b-value
- 0.5
- C value
- 2.1 l/sbar
- Switching time off
- 103 ms
- On switching time
- 23 ms
- Changeover time
- 55 ms
- Duty cycle
- 100%
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
