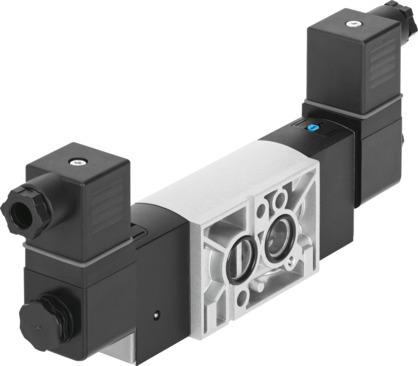

Reference imageConfirm configuration by manufacturer part number.
Festo
577282
Air solenoid valve VSNC-F-B52-D-G14-FN-1A1-EX4-A
The Festo 577282 is an electrical piston gate valve featuring a 5/2-way bistable function, a 32 mm width, and a normal nominal flow rate of 1350 l/min according to DIN 1343. Operating on 24V DC with an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar), this unit utilizes a soft sealing principle, an adjustable exhaust air function, and a NAMUR connection pattern conforming to VDI/VDE 3845 standards. Certified with IP65 protection using a plug socket per IEC 60529, the component carries ATEX category II 2G and II 2D ratings alongside IEC-EX EPL Db and EPL Ga certifications for explosive ambient temperatures from -40°C to +50°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577282
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577282.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1350 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Piston gate valve
- Explosion protection certication outside the EU
- EPL Db (IEC-EX) | EPL Ga (IEC-EX)
- Certicate issuing authority
- DNVGL-TAA000011J
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex ia IIC T6 Ga
- Type of (ignition) protection for dust
- Ex t IIIC T80°C Db
- Explosive ambient temperature
- -40°C <= Ta <= +50°C
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- With accessories
- b-value
- 0.4
- C value
- 5.6 l/sbar
