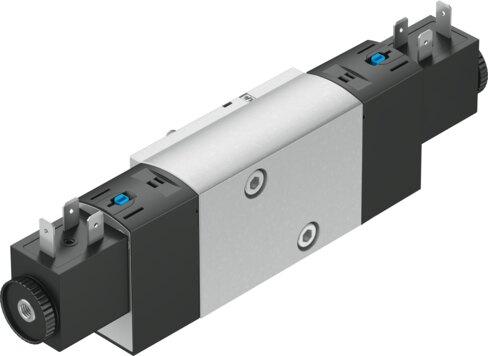

Name: Festo 577296 Air solenoid valve VSNC-F-B52-D-G14-F8-1B2
Brand: Festo

Air solenoid valve VSNC-F-B52-D-G14-F8-1B2

The Festo 577296 is a 5/2-way bistable industrial component featuring a 32 mm width, a piston gate valve structural design, and a NAMUR connection pattern pneumatic working port conforming to VDI/VDE 3845 standards. Operating on 24V DC with internal pilot air supply, this electrically actuated, piloted valve delivers a normal nominal flow rate of 1350 l/min across an operating pressure range of 0.15 MPa to 1 MPa. It provides an adjustable exhaust air function, soft sealing principle, positive overlap, detenting and non-detenting manual override, and IP65 and IP67 protection ratings with a plug socket. Additional certifications include c UL us recognition and DNVGL-TAA000011J approval for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 577296
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 577296.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Width: 32 mm
Normal nominal ow rate (normalized to DIN 1343): 1350 l/min
Pneumatic working port: NAMUR connection pattern
Operating voltage: 24V DC
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Structural design: Piston gate valve
Certication: c UL us - recognized (OL)
Certicate issuing authority: DNVGL-TAA000011J
Degree of protection: IP65 | IP67 | With plug socket | As per IEC 60529
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: VDI/VDE 3845 (NAMUR)
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Signal status display: With accessories
b-value: 0.4
C value: 5.6 l/sbar
Changeover time: 11 ms
Duty cycle: 100%
Coil characteristics: 24 V DC: 3.3 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 577296. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
