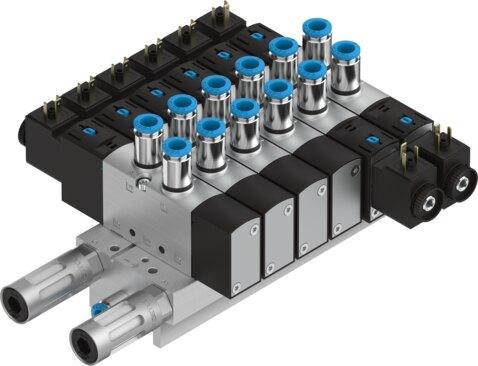

Name: Festo 577304 Valve manifold assembly VTUS-20
Brand: Festo

Valve manifold assembly VTUS-20

The Festo 577304 is an industrial component featuring an individual electrical connection, a width dimension of 22 mm, and an operating pressure range of -0.9 bar to 10 bar utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4]. Designed for a medium and ambient temperature range of -10 °C to 50 °C, it offers IP65 and IP67 protection with a plug socket as per IEC 60529, along with moderate corrosion resistance class 2 and ATEX Zone 2 and Zone 22 explosion protection certification. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 577304
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 577304.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: Individual connection
Electrical I/O system: No
Width dimension: 22 mm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium: -10 °C...50 °C
Ambient temperature: -10 °C...50 °C
Storage temperature: -20 °C...60 °C
Degree of protection: IP65 | IP67 | With plug socket | As per IEC 60529
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.15 MPa...1 MPa
Pilot pressure: 1.5 bar...10 bar
Operating pressure for valve manifold with internal pilot air supply: 1.5 bar...10 bar
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Certication: c UL us - recognized (OL)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
ATEX category gas: II 3G
ATEX category for dust: II 3D
Explosion protection certication outside the EU: EPL Dc (GB) | EPL Gc (GB)
Type of ignition protection for gas: Ex ec IIC T4 Gc X
Type of (ignition) protection for dust: Ex tc IIIC T115°C Dc X
Explosive ambient temperature: -10°C <= Ta <= +50°C
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 577304. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
