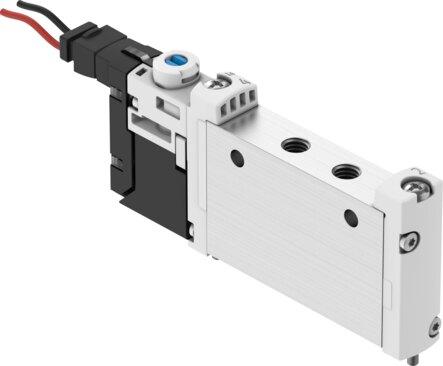

Name: Festo 577324 Air solenoid valve VUVG-S10-M52-RT-M5-1H2L-W1
Brand: Festo

Air solenoid valve VUVG-S10-M52-RT-M5-1H2L-W1

The Festo part number 577324 is an electrical 5/2-way monostable industrial component featuring a 10 mm valve size, a piston gate valve structural design, and an internal pilot air supply port operating at 24V DC. Delivering a normal nominal flow rate of 220 l/min through M5 pneumatic working ports, this piloted valve operates within a pressure range of 0.25 MPa to 0.8 MPa and utilizes mechanical and pneumatic spring reset methods with soft sealing. It includes an adjustable exhaust air function, IP40 protection with a plug socket, versatile mounting positions, and covered detenting or non-detenting manual override. Certified with RCM and c UL us recognition, the unit complies with EU and UKCA directives for EMC, low voltage, and RoHS regulations. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 577324
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 577324.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Valve size: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 220 l/min
Pneumatic working port: M5
Operating voltage: 24V DC
Operating pressure: 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
Structural design: Piston gate valve
Reset method: Mechanical spring | Pneumatic spring
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Degree of protection: IP40 | With plug socket
Nominal width: 3.2 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting | Covered
Type of control: Piloted
Pilot air supply port: Internal
Lap: Positive overlap
Pilot pressure MPa: 0.25 MPa...0.8 MPa
Pilot pressure: 2.5 bar...8 bar
Suitability for vacuum: No
