Festo
577512

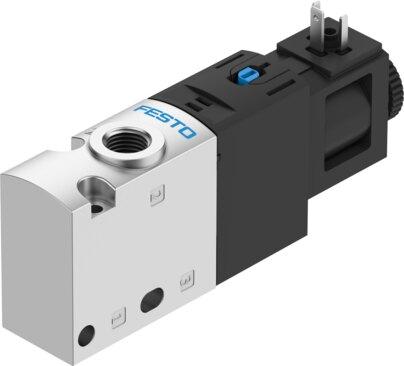

Air solenoid valve VUVS-LT20-M32C-MZD-G18-F7-1C1
The Festo 577512 is an electrical 3/2-way closed, monostable industrial component featuring a 21 mm valve size, a G1/8 pneumatic working port, and a normal nominal flow rate of 600 l/min normalized to DIN 1343. Designed with a plate seat structural design, soft sealing principle, and mechanical spring reset method, this piloted valve operates on 24V DC within an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar). It includes an adjustable exhaust air function, external pilot air supply port, negative overlap lap, and both detenting and non-detenting manual override capabilities while achieving an IP65 degree of protection with a plug socket as per IEC 60529 and c UL us recognition. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577512
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577512.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Valve size
- 21 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 5.2 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- b-value
- 0.39
- C value
- 2.3 l/sbar
- Switching time off
- 23 ms
- On switching time
- 9 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1900 µs
