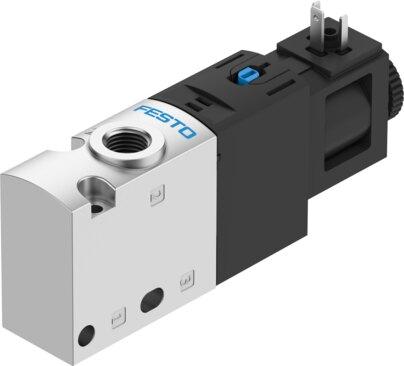

Reference imageConfirm configuration by manufacturer part number.
Festo
577513
Air solenoid valve VUVS-LT20-M32U-MD-G18-F7-1C1
The Festo 577513 is an electrical 3/2-way monostable open industrial component featuring a 21 mm valve size, a plate seat structural design, and a soft sealing principle with negative overlap. It delivers a normal nominal flow rate of 600 l/min through G1/8 pneumatic working ports at an operating pressure range of 0.25 MPa to 1 MPa, powered by a 24V DC operating voltage. Equipped with an adjustable exhaust air function, internal pilot air supply, mechanical spring reset, and both detenting and non-detenting manual override, the unit achieves an IP65 degree of protection when fitted with a plug socket in any mounting position. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577513
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577513.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Valve size
- 21 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 5.2 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.29
- C value
- 2.3 l/sbar
- Switching time off
- 24 ms
- On switching time
- 10 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1900 µs
- Max. negative test pulse on 1 signal
- 2700 µs
- Coil characteristics
- 24 V DC: 2.6 W
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 577513. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
