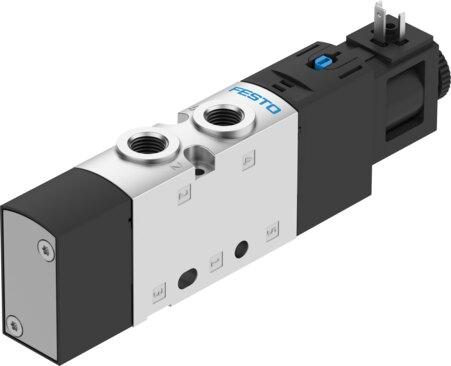

Reference imageConfirm configuration by manufacturer part number.
Festo
577515
Air solenoid valve VUVS-LT20-M52-MD-G18-F7-1C1
The Festo 577515 is a 5/2-way monostable electrical industrial component featuring a 21 mm valve size, a plate seat structural design, and a soft sealing principle. It delivers a normal nominal flow rate of 500 l/min through G1/8 pneumatic working ports at an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar) using 24V DC operating voltage. Certified as c UL us - recognized (OL) and rated IP65 with a plug socket per IEC 60529, this piloted unit includes internal pilot air supply, a mechanical spring reset method, adjustable exhaust air, and both detenting and non-detenting manual override. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 577515
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 577515.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 21 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 500 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.31
- C value
- 2.1 l/sbar
- Switching time off
- 19 ms
- On switching time
- 15 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1900 µs
- Max. negative test pulse on 1 signal
- 2700 µs
- Coil characteristics
- 24 V DC: 2.6 W
