Festo
578160

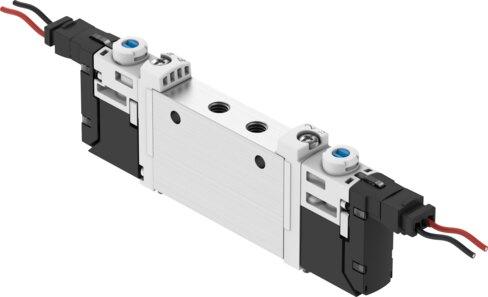

Air solenoid valve VUVG-L10-T32C-AT-M5-1H2L-W1
The Festo 578160 is an electrical industrial component featuring a 2x3/2 closed, monostable valve function and a 10 mm valve size with a nominal width of 2.7 mm. Operating at 24V DC within an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar), this piloted piston gate valve delivers a normal nominal flow rate of 150 l/min through M5 pneumatic working ports, utilizing internal pilot air supply, a soft sealing principle, a pneumatic spring reset method, and adjustable exhaust air function. It incorporates detenting, non-detenting, and covered manual override options, achieves an IP40 degree of protection with a plug socket, can be mounted in any position, and carries RCM compliance, c UL us recognition, CE markings for EU EMC, low voltage, and RoHS directives, and UKCA markings for UK instructions on EMC, electrical equipment, and RoHS. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578160
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578160.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 150 l/min
- Pneumatic working port
- M5
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | With plug socket
- Nominal width
- 2.7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Suitability for vacuum
- No
- Switching time off
- 15 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578160. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
