Festo
578164

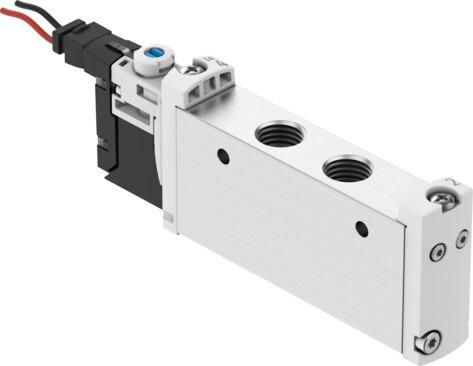

Air solenoid valve VUVG-L14-M52-MT-G18-1H2L-W1
The Festo 578164 is a 14 mm electrical 5/2-way monostable piston gate valve featuring a piloted type of control with internal pilot air supply and a nominal width of 5.6 mm. It delivers a normal nominal flow rate between 700 l/min and 780 l/min through G1/8 pneumatic working ports across an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) using 24V DC operating voltage. This unit incorporates a mechanical spring reset, soft sealing principle, adjustable exhaust air function, and a degree of protection of IP40 when fitted with a plug socket, along with covered detenting and non-detenting manual override capabilities. Certified with the RCM compliance mark and recognized under c UL us (OL), it carries CE and UKCA markings in accordance with applicable directives and instructions for EMC, low voltage, and RoHS, and supports any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578164
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578164.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min...780 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | With plug socket
- Nominal width
- 5.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
- Switching time off
- 40 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578164. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
