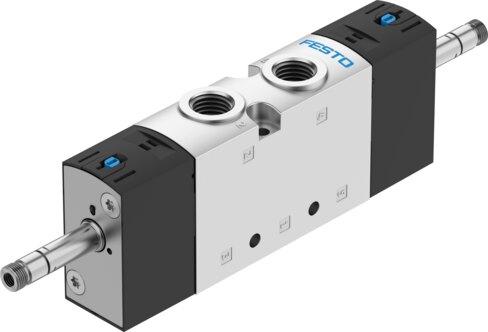

Reference imageConfirm configuration by manufacturer part number.
Festo
578206
Air solenoid valve VUVS-L25-P53C-MZD-N14-F8
The Festo 578206 is a 5/3-way closed electrical industrial component featuring a 26.5 mm valve size, a piston gate valve structural design, and a soft sealing principle with reversible flow direction. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), delivers a normal nominal flow rate of 1200 l/min through 1/4 NPT pneumatic working ports, and utilizes an external pilot air supply port with a 6.5 mm nominal width. This piloted valve includes a mechanical spring reset method, adjustable exhaust air function, detenting and non-detenting manual override, and operates at a voltage supplied via a separately ordered solenoid coil in any mounting position. It holds c UL us recognition and DNVGL-TAA000011J maritime classification certifications. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578206
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578206.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- 1/4 NPT
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Nominal width
- 6.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- b-value
- 0.4
- C value
- 5.2 l/sbar
- Switching time off
- 42 ms
- On switching time
- 13 ms
- Changeover time
- 26 ms
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
