Festo
578262

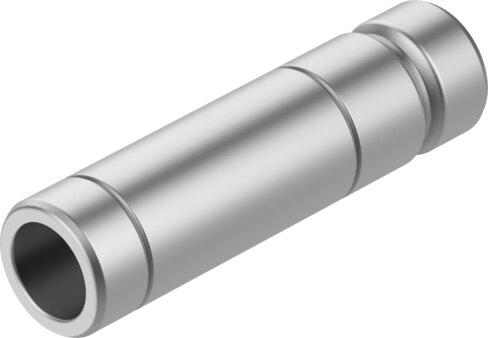

Blanking plug NPQH-P-S14-P10
The Festo 578262 is a standard blanking plug featuring a chemically nickel-plated brass housing and a 14 mm push-in sleeve pneumatic connection 1, supplied in a pack size of 10 with a product weight of 26.5 g. It operates within a temperature range of 0 °C to 150 °C and supports an operating pressure of -0.95 bar to 20 bar for compressed air and water, backed by a corrosion resistance class of CRC 3 and NSF C0523185 certification. This component accommodates lubricated operation, complies with RoHS materials standards, and holds VDMA24364-B1/B2-L LABS conformity for use in regulated environments. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578262
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578262.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Mounting position
- Any
- Design
- Blanking plug
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...2 MPa | -0.95 bar...20 bar | -13.775 psi...290 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certicate issuing authority
- NSF C0523185
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See declaration of conformity | NSF/ANSI 169
- Ambient temperature
- 0 °C...150 °C
- Product weight
- 26.5 g
- Pneumatic connection 1
- Push-in sleeve Ø 14 mm
- Note on materials
- RoHS compliant
- Housing material
- Brass, chemically nickel-plated
