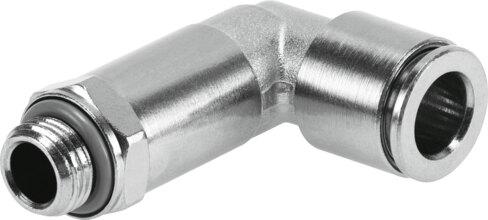

Name: Festo 578269 Push-in L-fitting, long NPQH-LL-G38-Q10-P10
Brand: Festo

Push-in L-fitting, long NPQH-LL-G38-Q10-P10

The Festo part number 578269 is a standard, L-shape long industrial component featuring an 8.5 mm nominal width, 18.3 mm tubing insertion depth, and a push-pull structural design with a sealing ring on the screwed plug. Operating across a pressure range of -0.095 MPa to 2 MPa (-0.95 bar to 20 bar / -13.775 psi to 290 psi) and temperatures from 0 °C to 150 °C, this component accommodates compressed air and liquid water with lubricated operation possible. It provides a corrosion resistance class of 3, meets ISO 14644-1 Class 4 cleanroom suitability, and holds NSF C0523185 and NSF/ANSI 169 certifications for food industry use. Submit your exact part number, quantity, and application requirements to receive a quote for this pack size of 10.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 578269
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 578269.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 8.5 mm
Tubing insertion depth: 18.3 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: L-shape, long
Pack size: 10
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...2 MPa | -0.95 bar...20 bar | -13.775 psi...290 psi
Information on operating pressure: Water: max. 0.6 MPa at 0 - 50 °C
Certicate issuing authority: NSF C0523185
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
For use in the food industry: See declaration of conformity | NSF/ANSI 169
Ambient temperature: 0 °C...150 °C
Nominal tightening torque: 9 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 50.8 g
Type of mounting: External hexagon SW16
Pneumatic connection 1: External thread G3/8
Pneumatic connection 2: for pneumatic tubing outside diameter 10 mm
Releasing ring color: Silver
Note on materials: RoHS compliant
Housing material: Brass, chemically nickel-plated
Material of threaded seal: FPM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 578269. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
