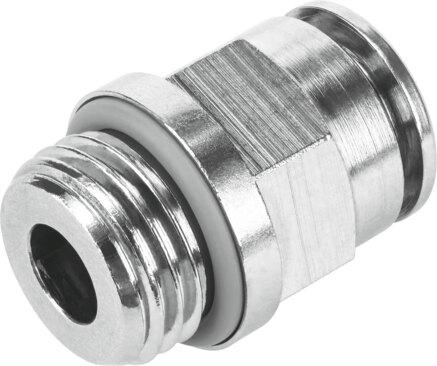

Reference imageConfirm configuration by manufacturer part number.
Festo
578334
Push-in fitting NPQH-D-M5-Q4-P10
This straight-design industrial component by Festo features a 2.5 mm nominal width, 13 mm tubing insertion depth, and a push-pull structural design utilizing a sealing ring on the screwed plug. Operating across a temperature range of 0 °C to 150 °C, it handles compressed air per ISO 8573-1:2010 [7:-:-] and liquid water with an operating pressure from -0.095 MPa to 2 MPa (-0.95 bar to 20 bar, -13.775 psi to 290 psi). Certified by NSF C0523185 with NSF/ANSI 169 compliance, the part provides Class 4 cleanroom suitability according to ISO 14644-1 and a corrosion resistance class of 3 for high corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578334
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578334.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.5 mm
- Tubing insertion depth
- 13 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...2 MPa | -0.95 bar...20 bar | -13.775 psi...290 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certicate issuing authority
- NSF C0523185
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- For use in the food industry
- See declaration of conformity | NSF/ANSI 169
- Ambient temperature
- 0 °C...150 °C
- Nominal tightening torque
- 1 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 5.8 g
- Type of mounting
- External hexagon, AF 9 | Internal hex AF2.5
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, chemically nickel-plated
- Material of threaded seal
- FPM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578334. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
