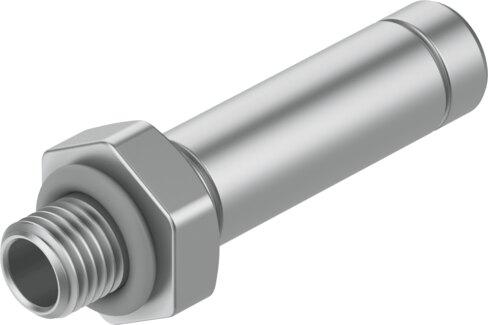

Reference imageConfirm configuration by manufacturer part number.
Festo
578359
Push-in fitting NPQH-D-M5-S6-P10
The Festo part number 578359 is a standard straight industrial component with a nominal width of 2.5 mm and a push-pull structural design utilizing a sealing ring on the screwed plug. Weighing 6 g and rated for a nominal tightening torque of 1 Nm with a ±20% tolerance, this unit features a corrosion resistance class of 3 and an operating pressure range from -0.95 bar to 20 bar for compressed air, alongside water compatibility up to 0.6 MPa at 0 to 50 °C. It is certified by NSF C0523185, conforms to NSF/ANSI 169 standards for the food industry, and operates within an ambient temperature range of 0 °C to 150 °C with any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this pack size of 10.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578359
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578359.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.5 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...2 MPa | -0.95 bar...20 bar | -13.775 psi...290 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certicate issuing authority
- NSF C0523185
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See declaration of conformity | NSF/ANSI 169
- Ambient temperature
- 0 °C...150 °C
- Nominal tightening torque
- 1 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 6 g
- Type of mounting
- External hexagon, AF 9
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- Push-in sleeve Ø 6 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, chemically nickel-plated
- Material of threaded seal
- FPM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578359. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
