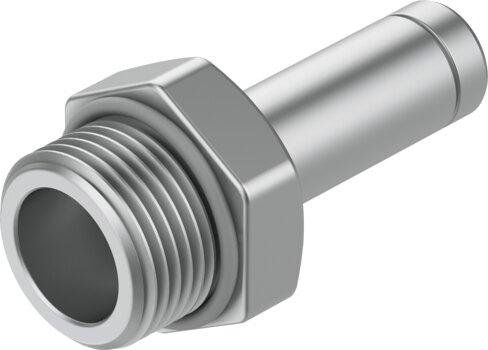

Reference imageConfirm configuration by manufacturer part number.
Festo
578363
Push-in fitting NPQH-D-G14-S6-P10
The Festo 578363 is a standard straight industrial component featuring a 4 mm nominal width, a sealing ring on the screwed plug, and a push-pull structural design that supports mounting in any position. It operates across a pressure range of -0.095 MPa to 2 MPa (-0.95 bar to 20 bar, -13.775 psi to 290 psi) for compressed air and up to 0.6 MPa for water at 0 to 50 °C, within an ambient temperature range of 0 °C to 150 °C. Rated with a corrosion resistance class of 3, this pack size of 10 weighs 13.9 g per unit and requires a nominal tightening torque of 7.5 Nm with a ±20% tolerance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578363
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578363.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...2 MPa | -0.95 bar...20 bar | -13.775 psi...290 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certicate issuing authority
- NSF C0523185
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See declaration of conformity | NSF/ANSI 169
- Ambient temperature
- 0 °C...150 °C
- Nominal tightening torque
- 7.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 13.9 g
- Type of mounting
- External hexagon SW16
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- Push-in sleeve Ø 6 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, chemically nickel-plated
- Material of threaded seal
- FPM
