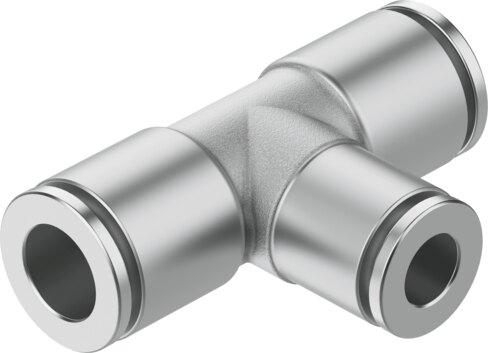

Reference imageConfirm configuration by manufacturer part number.
Festo
578386
Push-in T-connector NPQH-T-Q6-Q4-P10
The Festo part number 578386 is a standard T-shaped industrial component featuring a nominal width of 3 mm and a push-pull structural design for 6 mm outside diameter pneumatic tubing with an insertion depth of 15.8 mm. This component operates across a temperature range of 0 °C to 150 °C and handles pressures from -0.095 MPa to 2 MPa, accommodating compressed air and liquid water with a corrosion resistance class of 3. It holds NSF C0523185 certification, meets ISO 14644-1 cleanroom Class 4 standards, and comes in a pack size of 10 weighing 20.9 g each. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578386
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578386.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 3 mm
- Tubing insertion depth
- 13 mm...15.8 mm
- Note on the tubing insertion depth
- Ø4 depth 13 mm | Ø6 depth 15.8 mm
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...2 MPa | -0.95 bar...20 bar | -13.775 psi...290 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certicate issuing authority
- NSF C0523185
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- For use in the food industry
- See declaration of conformity | NSF/ANSI 169
- Ambient temperature
- 0 °C...150 °C
- Product weight
- 20.9 g
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, chemically nickel-plated
- Guard ring material
- PEI
- Releasing ring material
- Brass, chemically nickel-plated
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578386. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
