Festo
578392

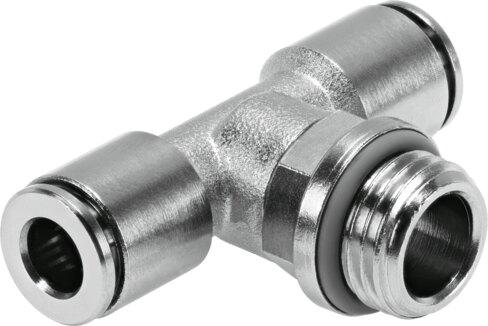

Push-in T-fitting NPQH-T-G18-Q4-P10
The Festo 578392 is a standard-sized, T-shaped industrial component featuring a 3 mm nominal width, a 13 mm tubing insertion depth, and a sealing ring on the screwed plug. Operating on the push-pull principle, it handles a pressure range of -0.095 MPa to 2 MPa (-0.95 bar to 20 bar, -13.775 psi to 290 psi) for compressed air and water up to 0.6 MPa at 0 to 50 °C, while offering Class 3 corrosion resistance and ISO 14644-1 cleanroom suitability. This pack size of 10 supports ambient temperatures from 0 °C to 150 °C with a nominal tightening torque of 6 Nm at a ±20% tolerance, meeting NSF/ANSI 169 standards for the food industry. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578392
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578392.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 3 mm
- Tubing insertion depth
- 13 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...2 MPa | -0.95 bar...20 bar | -13.775 psi...290 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certicate issuing authority
- NSF C0523185
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- For use in the food industry
- See declaration of conformity | NSF/ANSI 169
- Ambient temperature
- 0 °C...150 °C
- Nominal tightening torque
- 6 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 20.7 g
- Type of mounting
- External hexagon SW13
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, chemically nickel-plated
- Material of threaded seal
- FPM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578392. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
