Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
578800

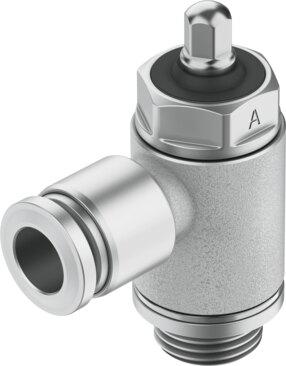

One-way flow control valve VFOH-LE-A-G14-Q8
The Festo part number 578800 is an industrial component featuring an exhaust air flow control non-return function with a QS-8 pneumatic connection 1 and a G1/4 pneumatic connection 2. This manually actuated unit utilizes an external hex adjusting element for screw-in mounting, supporting an operating pressure range of 0.2 bar to 10 bar across an ambient and medium temperature range of 0 °C to 150 °C. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] and accommodates oil lubrication, delivering a standard nominal flow rate of 530 l/min in the flow control direction and 402 l/min to 578 l/min in the non-return direction. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578800
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578800.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Pneumatic connection 1
- QS-8
- Pneumatic connection 2
- G1/4
- Actuation type
- Manual
- Adjusting element
- External hex
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 530 l/min
- Standard nominal ow rate in non-return direction
- 402 l/min...578 l/min
- Ambient temperature
- 0 °C...150 °C
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0.2 bar...10 bar
- Standard ow rate in ow control direction 6 -> 0 bar
- 720 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar
- 610 l/min...760 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -10 °C...150 °C
- Temperature of medium
- 0 °C...150 °C
- Nominal tightening torque
- 5 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 37 g
- Note on materials
- RoHS compliant
- Seals material
- FPM
- Hollow bolt material
- Wrought aluminum alloy
- Releasing ring material
- Brass, nickel-plated
- Material of adjusting screw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578800. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
