578801

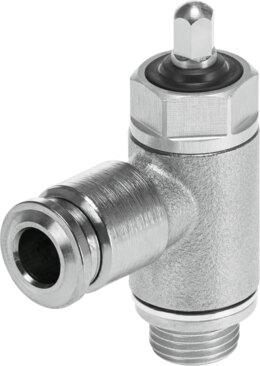

Name: Festo 578801 One-way flow control valve VFOH-LE-A-G14-Q10
Brand: Festo

One-way flow control valve VFOH-LE-A-G14-Q10

This Festo industrial component, part number 578801, features an exhaust air flow control non-return function with manual actuation via an external hex adjusting element. It incorporates a QS-10 pneumatic connection 1 and a G1/4 pneumatic connection 2, allowing screw-in mounting in any position across an ambient temperature range of 0 °C to 150 °C and an operating pressure range of 0.2 bar to 10 bar. The unit operates with compressed air as per ISO 8573-1:2010 [7:4:4], permits oil lubrication, and delivers a standard nominal flow rate of 520 l/min in the flow control direction and 345 l/min to 535 l/min in the non-return direction. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 578801
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 578801.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air ow control non-return function
Pneumatic connection 1: QS-10
Pneumatic connection 2: G1/4
Actuation type: Manual
Adjusting element: External hex
Type of mounting: Screw-in
Standard nominal ow rate in ow control direction: 520 l/min
Standard nominal ow rate in non-return direction: 345 l/min...535 l/min
Ambient temperature: 0 °C...150 °C
Mounting position: Any
Operating pressure for entire temperature range: 0.2 bar...10 bar
Standard ow rate in ow control direction 6 -> 0 bar: 840 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 635 l/min...790 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -10 °C...150 °C
Temperature of medium: 0 °C...150 °C
Nominal tightening torque: 5 Nm
Tolerance for nominal tightening torque: ±10%
Product weight: 48 g
Note on materials: RoHS compliant
Seals material: FPM
Hollow bolt material: Wrought aluminum alloy
Releasing ring material: Brass, nickel-plated
Material of adjusting screw: high-alloy stainless steel
