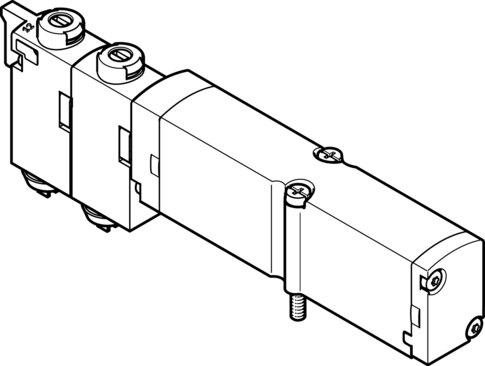

Name: Festo 578805 Air solenoid valve VMPA14-M1HF-J-PI
Brand: Festo

Air solenoid valve VMPA14-M1HF-J-PI

The Festo part number 578805 is a 14 mm electrical piston gate valve featuring a 5/2-way bistable valve function with piloted, reversible flow direction and a soft sealing principle. Operating on a 24V DC supply within an operating pressure range of -0.9 bar to 10 bar (-0.09 MPa to 1 MPa), this component delivers a normal nominal flow rate from 550 l/min to 670 l/min and supports a pilot pressure of 3 bar to 8 bar (0.3 MPa to 0.8 MPa). It includes both detenting and non-detenting manual overrides, a signal status display, vacuum suitability, and an IP65 degree of protection in the mounted state according to IEC 60529, backed by c UL us recognition (OL). Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 578805
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 578805.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Valve size: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 550 l/min...670 l/min
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | In mounted state | As per IEC 60529
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Flow direction: Reversible
Lap: Positive overlap
Signal status display: Yes
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Suitability for vacuum: Yes
Note on standard nominal ow rate: MPA-C: 770 l/min | MPA-L: 670 l/min | MPA-S: 550 l/min
Standard nominal ow rate with QS-8: 550 l/min...770 l/min
On switching time: 9 ms
Changeover time: 24 ms
Max. positive test pulse with 0 signal: 400 µs
Max. negative test pulse on 1 signal: 200 µs
Permissible voltage uctuations: +/- 25%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 578805. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
