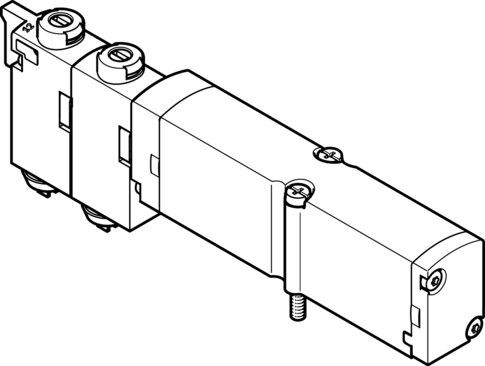

Reference imageConfirm configuration by manufacturer part number.
Festo
578807
Air solenoid valve VMPA14-M1HF-B-PI
Engineered with a 14 mm valve size, the Festo 578807 is a 5/3-way pressurized electrical industrial component featuring a piston gate valve structural design and soft sealing principle. This piloted unit delivers a normal nominal flow rate between 550 l/min and 630 l/min at an operating pressure ranging from -0.9 bar to 10 bar, supported by a 24V DC operating voltage, mechanical spring reset method, and IP65 degree of protection in the mounted state. It includes a signal status display, positive overlap lap, reversible flow direction, vacuum suitability, and both detenting and non-detenting manual override capabilities alongside c UL us - recognized (OL) certification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578807
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578807.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min...630 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- MPA-C: 690 l/min | MPA-L: 630 l/min | MPA-S: 550 l/min
- Standard nominal ow rate with QS-8
- 550 l/min...690 l/min
- Switching time off
- 40 ms
- On switching time
- 12 ms
- Changeover time
- 18 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 200 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578807. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
