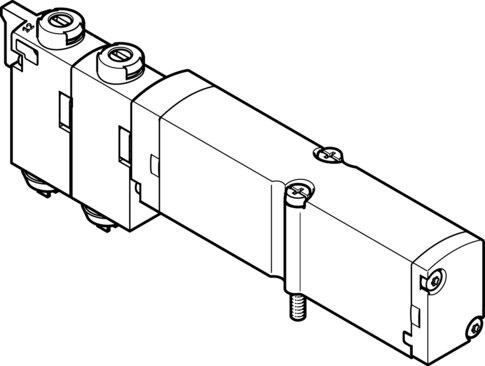

Reference imageConfirm configuration by manufacturer part number.
Festo
578809
Air solenoid valve VMPA14-M1HF-G-PI
The Festo 578809 is an electrically actuated 5/3-way closed industrial component featuring a 14 mm valve size and a piston gate valve structural design with a soft sealing principle. Operating on 24V DC within a pressure range of -0.9 bar to 10 bar, this piloted valve delivers a normal nominal flow rate between 500 l/min and 610 l/min and includes mechanical spring reset, reversible flow direction, positive overlap lap, and an integrated signal status display. It offers IP65 protection in the mounted state, accommodates any mounting position, supports vacuum applications, provides detenting and non-detenting manual override, and carries c UL us recognition certification. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578809
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578809.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 500 l/min...610 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- MPA-C: 660 l/min | MPA-L: 610 l/min | MPA-S: 500 l/min
- Standard nominal ow rate with QS-8
- 500 l/min...660 l/min
- Switching time off
- 40 ms
- On switching time
- 10 ms
- Changeover time
- 20 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 200 µs
