Festo
578812

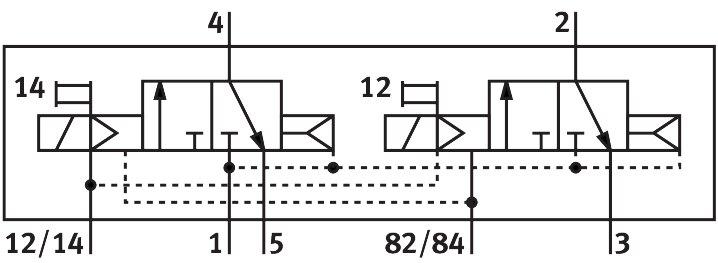

Air solenoid valve VMPA14-M1HF-K-PI
The Festo 578812 is an electrical piston gate valve featuring a 14 mm valve size, a 2x3/2 closed monostable valve function, and a soft sealing principle with positive overlap. This piloted component delivers a normal nominal flow rate of 550 l/min to 600 l/min at an operating pressure ranging from 0.3 MPa to 1 MPa, powered by a 24V DC operating voltage and utilizing a pneumatic spring reset method. Designed with IP65 degree of protection in the mounted state as per IEC 60529, it includes both detenting and non-detenting manual override, a signal status display, and c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578812
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578812.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min...600 l/min
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
- Note on standard nominal ow rate
- MPA-C: 760 l/min | MPA-L: 600 l/min | MPA-S: 550 l/min
- Standard nominal ow rate with QS-8
- 550 l/min...760 l/min
- Switching time off
- 28 ms
- On switching time
- 10 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 200 µs
- Permissible voltage uctuations
- +/- 25%
