Festo
578819

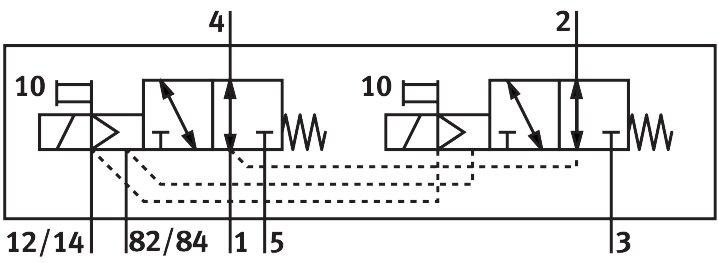

Air solenoid valve VMPA14-M1HF-NS-PI
Engineered with a piston gate valve structural design and a soft sealing principle, the Festo 578819 is an electrical 2x3/2 open monostable industrial component featuring a 14 mm valve size and a normal nominal flow rate ranging from 470 l/min to 520 l/min. This piloted unit operates at 24V DC with an operating pressure of -0.09 MPa to 0.8 MPa and includes a mechanical spring reset method, reversible flow direction, and IP65 protection. It supports vacuum applications, offers both detenting and non-detenting manual overrides, and holds c UL us - recognized (OL) certification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578819
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578819.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 470 l/min...520 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.4 MPa...0.8 MPa
- Pilot pressure
- 4 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- MPA-C: 550 l/min | MPA-L: 520 l/min | MPA-S: 470 l/min
- Standard nominal ow rate with QS-8
- 470 l/min...550 l/min
- Switching time off
- 20 ms
- On switching time
- 12 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 200 µs
- Permissible voltage uctuations
- +/- 25%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578819. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
