Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
578824

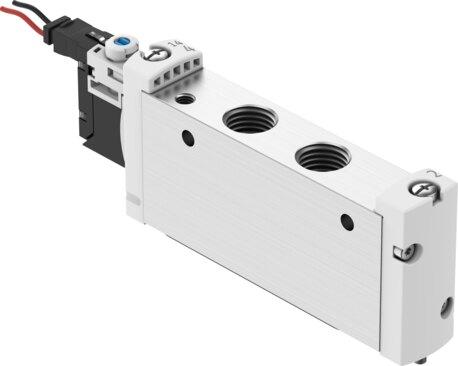

Air solenoid valve VUVG-L18-M52-MT-G14-1H2L-W1
The Festo 578824 is a piloted 5/2-way monostable industrial component utilizing a piston gate valve structural design with a soft sealing principle and a 6.9 mm nominal width. Operating on 24V DC with an electrical actuation type and internal pilot air supply port, this 18 mm valve delivers a normal nominal flow rate of 1300 l/min through G1/4 pneumatic working ports across an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). It features an adjustable exhaust air function, mechanical spring reset method, covered, detenting, and non-detenting manual override, and IP40 degree of protection with a plug socket for mounting in any position. This unit carries c UL us recognition and the RCM compliance mark, alongside CE and UKCA markings conforming to applicable EU and UK directives for EMC, low voltage, and RoHS. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578824
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578824.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | With plug socket
- Nominal width
- 6.9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Indeterminate overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Switching time off
- 45 ms
- On switching time
- 10 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578824. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
