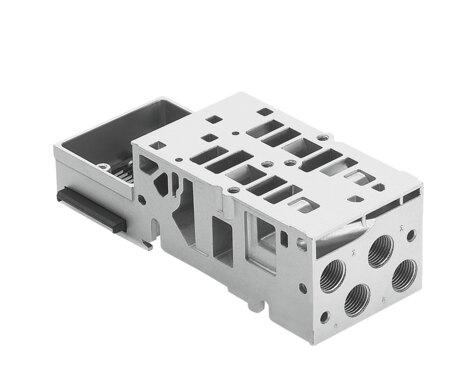

Reference imageConfirm configuration by manufacturer part number.
Festo
578864
Sub-base VMPA2-FB-APF-2-1-T0
The Festo 578864 industrial component features a width of 46 mm, a length of 107.3 mm, a width dimension of 21 mm, and a product weight of 185 g with a die-cast aluminum sub-base. It supports a maximum of 2 valve positions, an operating pressure of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), and utilizes compressed air operating medium conforming to ISO 8573-1:2010 [7:4:4]. This RoHS compliant part has a corrosion resistance class of 0 with no corrosion stress, VDMA24364-B1/B2-L LABS conformity, and an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 578864
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 578864.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 46 mm
- Length
- 107.3 mm
- Width dimension
- 21 mm
- Max. no. of valve positions
- 2
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 185 g
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 578864. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
