Festo
579051

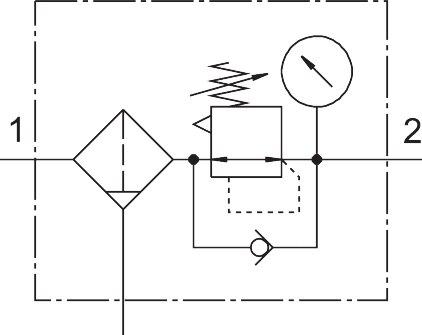

Filter regulator MS6-LFR-1/2-D7-E-R-M-RG-AS
The Festo 579051 is an MS-series size 6 filter regulator featuring a 40 µm filtration grade, a manual rotating condensate drain with a 38 ml maximum volume, and a 4500 l/min normal nominal flow rate calibrated to DIN 1343. Operating within a pressure regulation range of 0.5 bar to 12 bar and an operating pressure of 0.8 bar to 20 bar, this unit includes a red/green scale pressure gauge, constant output pressure control with secondary exhausting, and a plastic bowl guard. Built with a rotary knob actuator lock with detent and a CRC 2 moderate corrosion resistance class, it functions with compressed air per ISO 8573-1:2010 [-:4:-] or inert gases in a vertical ±5° mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 579051
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 579051.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Manual, rotating
- Structural design
- Filter regulator with pressure gauge
- Max. condensate volume
- 38 ml
- Controller function
- Constant output pressure | With secondary exhausting
- Bowl guard
- Plastic bowl guard
- Degree of condensate separation
- 75 %
- Pressure gauge
- Red/green scale
- Operating pressure
- 0.08 MPa...2 MPa | 0.8 bar...20 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. pressure hysteresis
- 0.025 MPa | 0.25 bar | 3.625 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 4500 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:4:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Pore size
- 40 µm
- Product weight
- 875 g
- Type of mounting
- Alternatively:
