589250

Name: Festo 589250 Soft start/quick exhaust valve MS6-SV-1/2-C-10V24P
Brand: Festo

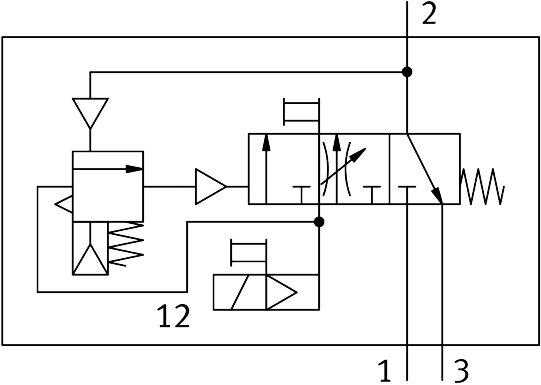

Soft start/quick exhaust valve MS6-SV-1/2-C-10V24P

The Festo part number 589250 is an industrial component from the MS series, size 6, featuring a width dimension of 62 mm and a piston gate valve structural design with positive overlap. This electrically actuated, piloted 3/2-way closed monostable valve provides exhaust and pressurization safety functions adhering to DIN EN ISO 13849-1 and DIN EN ISO 13849-2 standards, achieving Category 1, Performance Level c for both exhausting and the prevention of unexpected start-up. Operating within a pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), the unit incorporates internal pilot air supply, soft sealing, mechanical spring reset, and a C value of 23.2 l/sbar with a b-value of 0.4. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 589250
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 589250.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Series: MS
Size: 6
Width dimension: 62 mm
Safety function: Exhausting | Prevention of unexpected start-up (pressurization)
Performance Level (PL): Exhaust/category 1, performance level c | Avoidance of unexpected start-up (pressurization)/category 1, | performance level c
Note on forced dynamization: Switching frequency at least once a month
Structural design: Piston gate valve
Lap: Positive overlap
Actuation type: Electrical
Pilot air supply port: Internal
Sealing principle: Soft
Exhaust air function: Cannot be throttled
Conforms to standard: DIN EN ISO 13849-1 | DIN EN ISO 13849-2
Manual override: At pilot control air solenoid valve: non-detenting, detenting, at soft | start/quick exhaust valve: detenting, self-resetting
Reset method: Mechanical spring
Type of control: Piloted
Valve function: 3/2-way, closed, monostable | Pressurization function
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
C value: 23.2 l/sbar
b-value: 0.4
Normal nominal ow rate (normalized to DIN 1343): 5700 l/min
Standard ow rate exhaust 6-> 0 bar: 7600 l/min
Switching time oﬀ: 65 ms
On switching time: 370 ms
Duty cycle: 100%
Coil characteristics: 24 V DC: 1.8 W

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 589250. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
