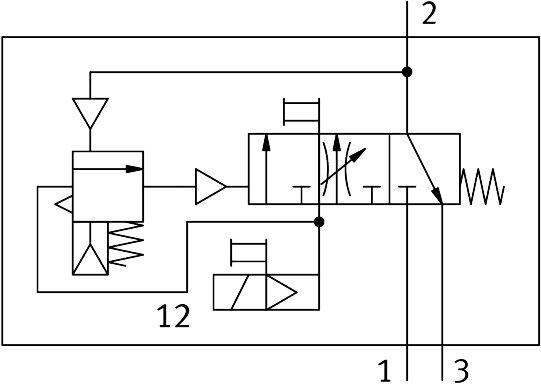

Reference imageConfirm configuration by manufacturer part number.
Festo
589481
Soft start/quick exhaust valve MS6-SV-1/2-C-10V24
The Festo 589481 is a size 6 industrial component from the MS series featuring a 62 mm width dimension, a piston gate valve structural design with positive overlap, and a soft sealing principle. Operating at 0.3 MPa to 1 MPa (3 bar to 10 bar) with an electrical actuation type and internal pilot air supply port, this piloted 3/2-way closed monostable valve provides exhausting and prevention of unexpected start-up pressurization functions with category 1, performance level c ratings conforming to DIN EN ISO 13849-1 and DIN EN ISO 13849-2. It includes a C value of 23.2 l/sbar, a b-value of 0.4, mechanical spring reset, and non-detenting manual override at the pilot control air solenoid valve with detenting, self-resetting manual override at the soft start/quick exhaust valve. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 589481
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 589481.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Series
- MS
- Size
- 6
- Width dimension
- 62 mm
- Safety function
- Exhausting | Prevention of unexpected start-up (pressurization)
- Performance Level (PL)
- Exhaust/category 1, performance level c | Avoidance of unexpected start-up (pressurization)/category 1, | performance level c
- Note on forced dynamization
- Switching frequency at least once a month
- Structural design
- Piston gate valve
- Lap
- Positive overlap
- Actuation type
- Electrical
- Pilot air supply port
- Internal
- Sealing principle
- Soft
- Exhaust air function
- Cannot be throttled
- Conforms to standard
- DIN EN ISO 13849-1 | DIN EN ISO 13849-2
- Manual override
- At pilot control air solenoid valve: non-detenting, at soft start/quick | exhaust valve: detenting, self-resetting
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Valve function
- 3/2-way, closed, monostable | Pressurization function
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- C value
- 23.2 l/sbar
- b-value
- 0.4
- Normal nominal ow rate (normalized to DIN 1343)
- 5700 l/min
- Standard ow rate exhaust 6-> 0 bar
- 7600 l/min
- Switching time off
- 65 ms
- On switching time
- 370 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 1.8 W
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 589481. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
