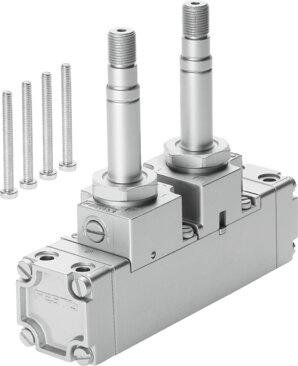

Reference imageConfirm configuration by manufacturer part number.
Festo
5955
Air solenoid valve CJM-5/2-1/4-CH
The Festo part number 5955 is an electrical 5/2-way bistable industrial component featuring a piloted, non-reversible flow direction with a normal nominal flow rate of 1400 l/min normalized to DIN 1343 and a nominal width of 6.5 mm. Operating within a pressure range of 1.5 bar to 10 bar and a medium temperature range of -10 °C to 60 °C, this sub-base mounted valve delivers a maximum switching frequency of 40 Hz with an on switching time of 28 ms using compressed air as per ISO 8573-1:2010 [7:4:4]. It includes a non-detenting manual override, G1/8 pilot air ports 12 and 14, a G1/4 pneumatic connection 1, VDMA24364 Zone III LABS conformity, and permits operation with oil lubrication. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5955
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5955.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Pneumatic working port
- Sub-base
- Operating pressure
- 1.5 bar...10 bar
- Nominal width
- 6.5 mm
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Max. switching frequency
- 40 Hz
- On switching time
- 28 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -10 °C...60 °C
- Type of mounting
- On sub-base
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 4
- G1/4
- Pneumatic connection 5
- G1/4
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy
- Diaphragm material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5955. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
