5960

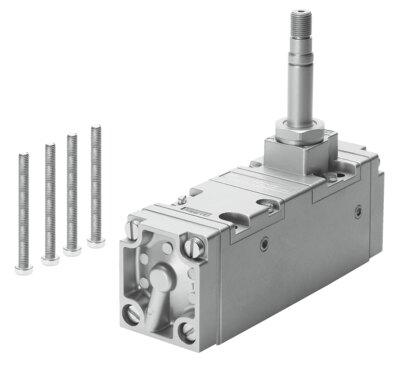

Name: Festo 5960 Air solenoid valve CM-5/2-1/4-CH
Brand: Festo

Air solenoid valve CM-5/2-1/4-CH

The Festo 5960 is an electrically actuated 5/2-way monostable industrial component featuring a piloted type of control and a pneumatic spring reset method. It delivers a normal nominal flow rate of 1400 l/min through a sub-base pneumatic working port and a nominal width of 6.5 mm, operating within a pressure range of 1.5 bar to 10 bar. Designed for any mounting position on a sub-base, this unit achieves a maximum switching frequency of 40 Hz with an on switching time of 28 ms using compressed air as per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5960
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5960.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Normal nominal ow rate (normalized to DIN 1343): 1400 l/min
Pneumatic working port: Sub-base
Operating pressure: 1.5 bar...10 bar
Reset method: Pneumatic spring
Nominal width: 6.5 mm
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Max. switching frequency: 40 Hz
On switching time: 28 ms
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 Zone III
Temperature of medium: -10 °C...60 °C
Type of mounting: On sub-base
Pilot air port 12: G1/8
Pilot air port 14: G1/8
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/4
Pneumatic connection 3: G1/4
Pneumatic connection 4: G1/4
Pneumatic connection 5: G1/4
Seals material: NBR
Housing material: Wrought aluminum alloy
Diaphragm material: PUR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 5960. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
