Festo
604883

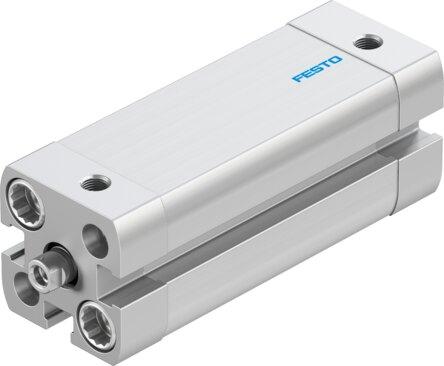

Compact cylinder ADN-12-60-I-P-A
The Festo 604883 is a double-acting industrial component featuring a 12 mm piston diameter, a 60 mm stroke, and an internal M3 piston rod thread built to ISO 21287 norms. Operating between 1 bar and 10 bar (14.5 psi to 145 psi) on compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit provides elastic cushioning rings at both ends, position sensing via proximity switch, and a Class 5 cleanroom suitability rating according to ISO 14644-1. It delivers a theoretical force of 51 N retracting and 68 N advancing at 6 bar while withstanding moderate corrosion stress (CRC 2) and ambient temperatures from -20 °C to 80 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 604883
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 604883.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 60 mm
- Piston diameter
- 12 mm
- Piston rod thread
- M3
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- Internal thread
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.07 J
- Theoretical force at 6 bar, retracting
- 51 N
- Theoretical force at 6 bar, advancing
- 68 N
- Moving mass
- 23 g
- Product weight
- 136 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- M5
- Flange screws material
- Steel
- Cover material
- Wrought aluminum alloy, anodized
- Seals material
- TPE-U(PUR)
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 604883. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
