Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

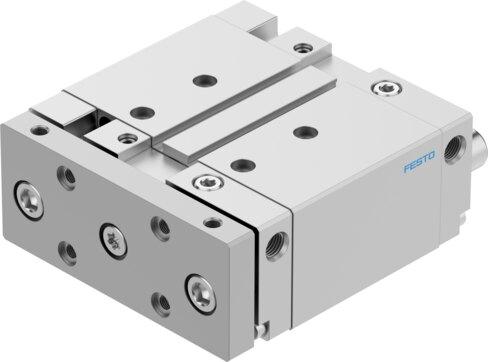

Reference imageConfirm configuration by manufacturer part number.
Festo
609361
Guided drive DFM-50-50-B-PPV-A-KF
Festo Guided drive DFM-50-50-B-PPV-A-KF, part number 609361, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 609361
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 609361.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Stroke
- 50 mm
- Piston diameter
- 50 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Impact energy in the end positions
- 1 J
- Theoretical force at 6 bar, retracting
- 1057 N
- Theoretical force at 6 bar, advancing
- 1178 N
- Alternative connections
- See product drawing
- Pneumatic connection
- G1/4
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy
- Piston rod material
- high-alloy stainless steel
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 609361. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
