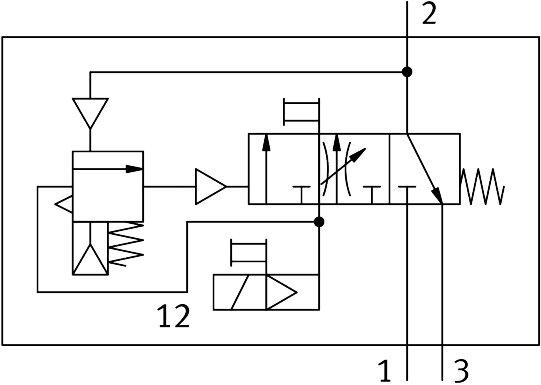

Reference imageConfirm configuration by manufacturer part number.
Festo
611243
Soft start/quick exhaust valve MS6-SV-1/2-C-10V24P-S-AD7
The Festo 611243 is a size 6 industrial component from the MS series featuring a 62 mm width dimension, a piston gate valve structural design, and a positive overlap lap. This electrically actuated, piloted 3/2-way closed monostable valve provides exhausting and pressurization functions for the prevention of unexpected start-ups, operating at 0.3 MPa to 1 MPa (3 bar to 10 bar) with an internal pilot air supply port, soft sealing principle, mechanical spring reset method, and a C value of 23.2 l/sbar. It conforms to DIN EN ISO 13849-1 and DIN EN ISO 13849-2 standards, achieving performance level c for category 1 exhaust and pressurization functions, and includes a pressure sensor with a switching indicator alongside non-detenting and detenting manual overrides. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 611243
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 611243.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Series
- MS
- Size
- 6
- Width dimension
- 62 mm
- Safety function
- Exhausting | Prevention of unexpected start-up (pressurization)
- Performance Level (PL)
- Exhaust/category 1, performance level c | Avoidance of unexpected start-up (pressurization)/category 1, | performance level c
- Note on forced dynamization
- Switching frequency at least once a month
- Structural design
- Piston gate valve
- Lap
- Positive overlap
- Actuation type
- Electrical
- Pilot air supply port
- Internal
- Sealing principle
- Soft
- Exhaust air function
- Cannot be throttled
- Conforms to standard
- DIN EN ISO 13849-1 | DIN EN ISO 13849-2
- Manual override
- At pilot control air solenoid valve: non-detenting, detenting, at soft | start/quick exhaust valve: detenting, self-resetting
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Valve function
- 3/2-way, closed, monostable | Pressurization function
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Pressure gauge
- with pressure sensor with switching indicator
- C value
- 23.2 l/sbar
- b-value
- 0.4
- Normal nominal ow rate (normalized to DIN 1343)
- 5700 l/min
- Standard ow rate exhaust 6-> 0 bar
- 7600 l/min
- Switching time off
- 65 ms
- On switching time
- 370 ms
- Duty cycle
- 100%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 611243. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
