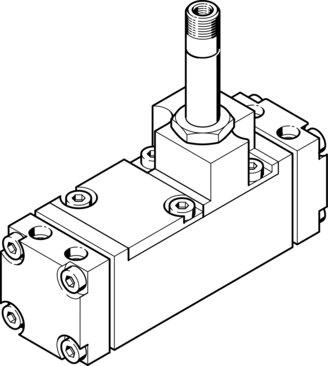

Name: Festo 6154 Air solenoid valve CM-5/2-1/4-FH
Brand: Festo

Air solenoid valve CM-5/2-1/4-FH

The Festo 6154 is a monostable 5/2-way industrial component featuring electrical actuation and a nominal width of 6.5 mm. It achieves a normal nominal flow rate of 1400 l/min across an operating pressure range of 1.5 bar to 8 bar with G1/4 pneumatic working ports and G1/8 pilot air ports 12 and 14. This unit supports sub-base mounting in any position, a maximum switching frequency of 40 Hz, an on switching time of 28 ms, and operation with compressed air per ISO 8573-1:2010 [7:4:4] requiring oil lubrication. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 6154
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 6154.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Normal nominal ow rate (normalized to DIN 1343): 1400 l/min
Pneumatic working port: G1/4
Operating pressure: 1.5 bar...8 bar
Nominal width: 6.5 mm
Mounting position: Any
Manual override: Non-detenting
Max. switching frequency: 40 Hz
On switching time: 28 ms
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 Zone III
Temperature of medium: -10 °C...60 °C
Type of mounting: On sub-base
Pilot air port 12: G1/8
Pilot air port 14: G1/8
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/4
Pneumatic connection 3: G1/4
Pneumatic connection 4: G1/4
Pneumatic connection 5: G1/4
Seals material: NBR
Housing material: Wrought aluminum alloy
Diaphragm material: PUR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 6154. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
