Festo
6159

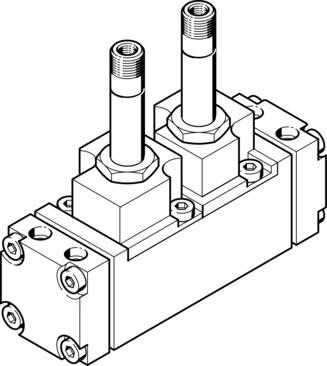

Air solenoid valve CJM-5/2-1/4-FH
Engineered by Festo, the part number 6159 is a 5/2-way bistable industrial component featuring electrical actuation and piloted control with a nominal width of 6.5 mm. This unit delivers a normal nominal flow rate of 1400 l/min at an operating pressure ranging from 1.5 bar to 8 bar, supporting a maximum switching frequency of 40 Hz and an on switching time of 28 ms. Designed for sub-base mounting in any position, it utilizes G1/4 pneumatic connections for ports 1 and 2 alongside G1/8 pilot air ports 12 and 14, operating within a medium temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. Please submit the exact part number, quantity, and application requirements for an official price and lead-time quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 6159
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 6159.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Pneumatic working port
- Sub-base
- Operating pressure
- 1.5 bar...8 bar
- Nominal width
- 6.5 mm
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Max. switching frequency
- 40 Hz
- On switching time
- 28 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -10 °C...60 °C
- Type of mounting
- On sub-base
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 4
- G1/4
- Pneumatic connection 5
- G1/4
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy
- Diaphragm material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 6159. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
